Semi-Automatic Spot Taping Machines

Spring Mills Manufacturing, Inc. has over 50 years of experience providing industrial solutions. Our semi-automatic spot taping systems offer a reliable way to secure bundles of wires, cables, hoses, and tubing. These machines deliver consistent results, reduce labor, and improve efficiency on production lines.

Spot taping applies adhesive tape at defined points along a bundle, keeping it together and adding identification or color coding. Manual taping is slow and inconsistent, but Spring Mills’ semi-automatic spot taping machines handle these tasks quickly and accurately. They accommodate a variety of bundle sizes, tape types, and adhesives, ensuring reliable performance in high-volume industrial environments.

Each system is built to operate in challenging conditions, including exposure to oils, fluids, and temperature extremes. Tape materials include paper, vinyl (UPVC), polyester, and polyimide, with adhesives such as silicone, acrylic, and rubber. Operators benefit from straightforward setup, fast tape loading, and consistent application on every bundle, reducing errors and improving overall workflow.

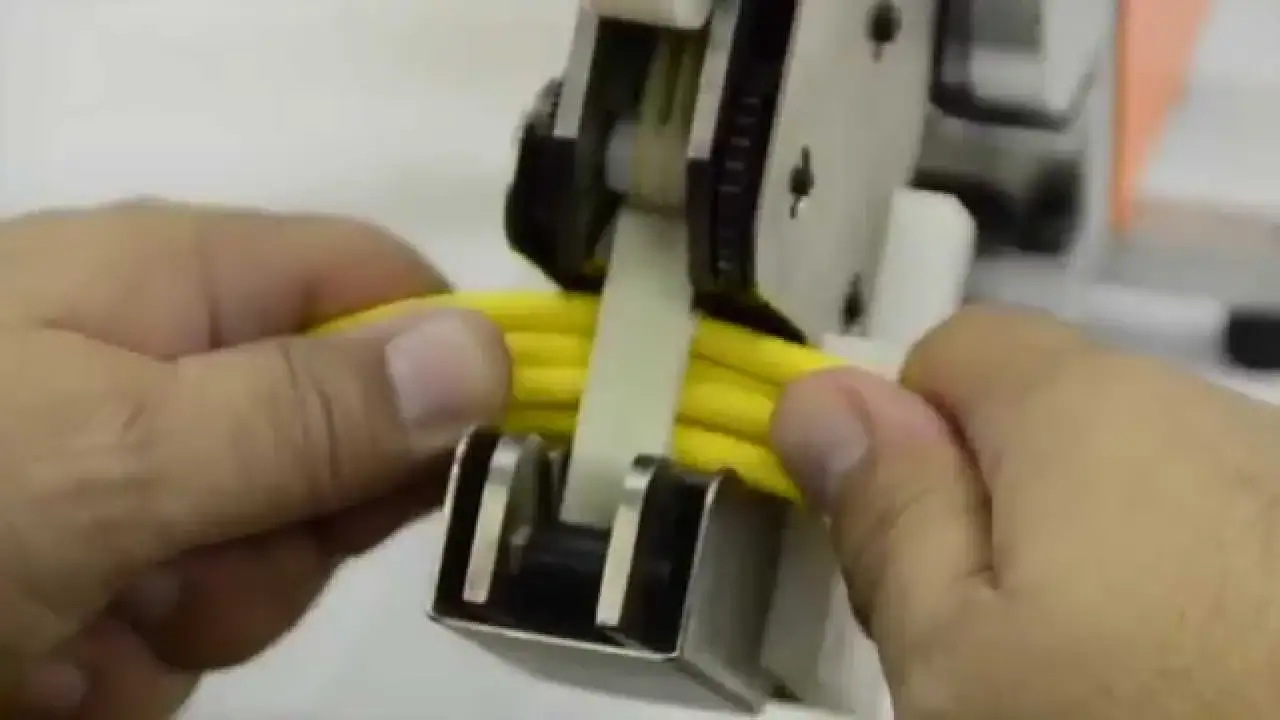

What is Spot Taping?

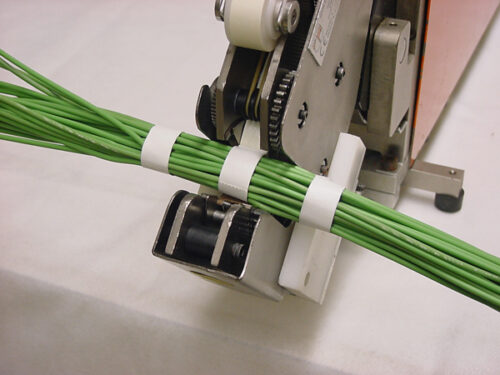

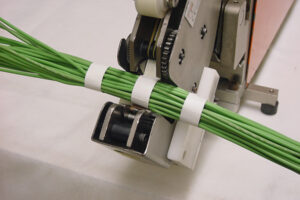

Spot taping is the precise application of tape at specific points on a bundle. Spring Mills’ machines place tape consistently where it is needed, securing bundles and providing clear identification. They are ideal for wiring harnesses, hoses, tubing, and other small assemblies, reducing errors and keeping production organized.

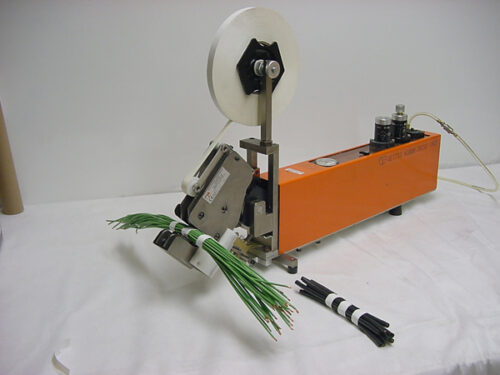

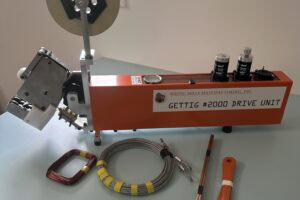

Semi-Automatic Spot Taping Machines

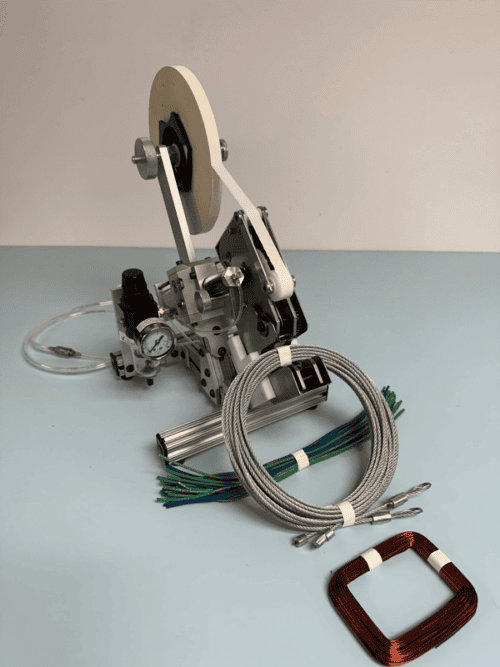

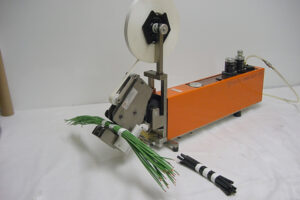

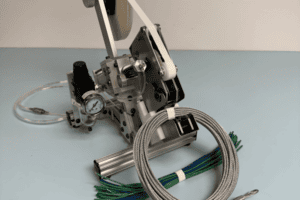

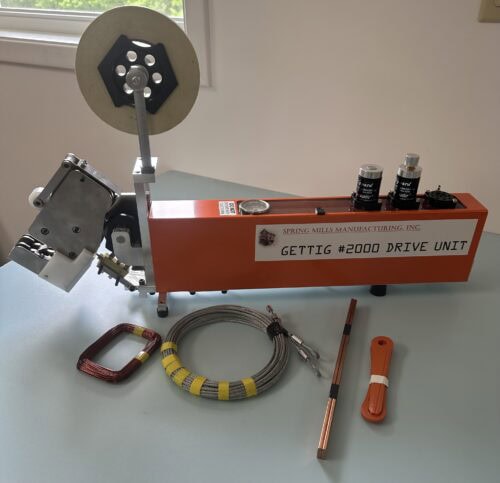

The Semi-Automatic Spot Taping System is designed for multiple functions including wire bundling, taping, and color coding. These systems are suitable for high-volume production, handling up to 1,200 applications per hour depending on bundle size and tape type. Their semi-automatic operation provides speed and control, allowing operators to feed bundles quickly while the machine handles precise tape placement.

Applications include wiring harness assembly, bundling hoses and tubing, and managing cable groups for color coding and identification. The machines are widely used in automotive, electronics, hose/tubing, and white goods manufacturing, providing consistent results in environments where reliability matters.

Key Features

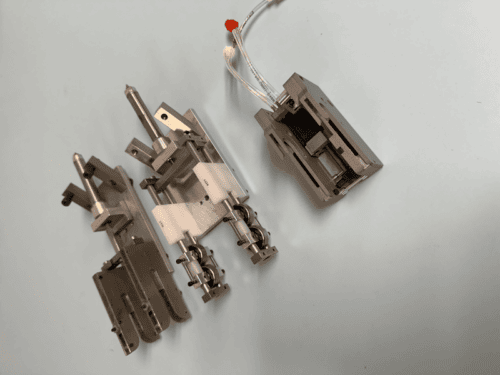

• Optional Integration: Can be added to in-line systems for automated workflows
• Customizable: Configurable for bundle sizes, tape types, and production needs
• Low-Maintenance: Engineered for long-term reliability
• Durable Construction: Built to withstand industrial environments
• Bundle Diameter Range: 0.050″ to 1.500″
• Tape Materials: Paper, Vinyl (UPVC), Polyester, Polyimide
• Tape Colors:
  • Polyester – available upon request
  • Paper and Vinyl – any color, including white and clear
• Adhesives:
  • Polyester – Silicone & Acrylic
  • Paper/Vinyl – Rubber
• Production Rate: Up to 1,200 applications per hour
• Successful Exposure Testing: Antifreeze, Brake Fluid, Motor Oil, Salt Water, Transmission Fluid, Windshield Washer Fluid
• Tested Temperature Range:
  • Polyester: –40°C to 150°C
  • Paper/Vinyl: –4°F to 158°F

Spring Mills’ spot taping machines can meet UL 510 standards, with flame testing performed for polyester tapes. Lead times are quoted on a job-by-job basis, with expedited service available for urgent production needs.

Applications and Benefits

These machines are used for wire harness assembly, bundling hoses or tubing, and color coding bundles for production identification. They work efficiently in high-volume environments, consistently placing tape at the correct points. Benefits include faster production, consistent tape placement, reduced labor costs, and lower risk of human error. Multiple tape and adhesive options provide flexibility for different applications, while the semi-automatic design allows control without fully automating the process.

Why Choose Spring Mills?

With decades of experience, we deliver machines that are reliable, efficient, and built to perform in demanding industrial settings. Our semi-automatic spot taping machines help companies secure bundles, increase efficiency, and maintain high standards on production lines.

Increase productivity and consistency with Spring Mills’ semi-automatic spot taping machines. Contact us today to request a demo, get a quote, or discuss your production needs. Let our machines help you tape bundles faster, reduce labor, and achieve precise, reliable results every time.
